FIG. 1.04Bolts · NXB-EYE

Eye Bolts

A forged or formed loop head provides an attachment point for cables, hooks, and slings; forged shoulder-pattern eye bolts carry rated lifting loads in line with the shank.

Conforms to

DIN 580ASTM A489ASME B18.15

Size rangeM6–M36 · 1/4"–1-1/4"

FIG. 1.04Drawn to standard

Eye Bolts — representative profile, dimensioned to standard

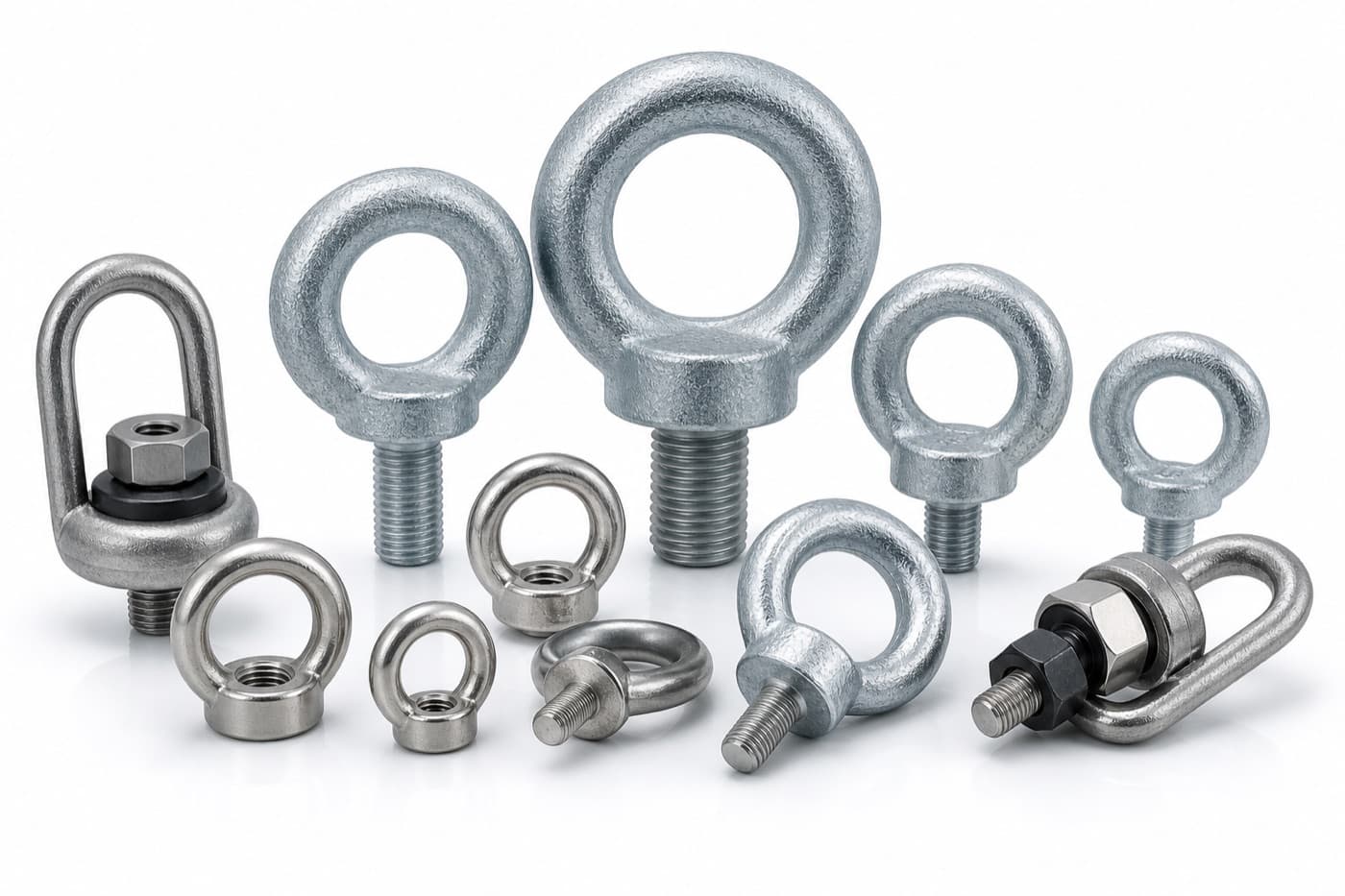

Eye Bolts — representative product photograph — PLATEEye Bolts — as supplied

FIG. SPECAt a glance

Size rangeM6–M36 · 1/4"–1-1/4"

Materials3 options

Finishes3 options

Standards3 refs

Applications5 typical

FamilyBolts

Looped head for rigging, lifting, and tie-down anchorage.

FIG. TBLSpecifications

Representative specifications

A cross-section of stocked configurations. Not exhaustive — diameters, lengths, grades, and finishes extend across the full range on request.

Diameter	Thread	Material	Finish	Grade	Standard	Tensile
M10	1.5 coarse	Carbon Steel	Galvanized	Class 4 (forged C15E)	DIN 580	360 MPa
1/2"	13 UNC	Carbon Steel	Zinc Plated	Forged carbon	ASTM A489	60 ksi
M12	1.75 coarse	Stainless 316	Plain	A4-70	DIN 580	700 MPa
M20	2.5 coarse	Carbon Steel	Galvanized	Class 4 (C15E)	DIN 580	360 MPa

Representative specifications — not exhaustive · NXB-EYE

FIG. SELSelection

Materials, finishes & where it works

Match the line to the load, the environment, and the standard it answers to.

Materials

Carbon SteelStainless 304Stainless 316

Finishes

GalvanizedZinc PlatedPlain

Standards

DIN 580ASTM A489ASME B18.15

Typical applications

Overhead lifting and hoisting
Machinery and motor lifting points
Cable and wire-rope rigging
Tie-down and tensioning
Spring and pulley anchorage

Served industries

Construction Marine Oil & Gas OEM & Assembly

FIG. RELRelated lines

Pairs & alternatives

Mating parts and adjacent lines engineers reach for alongside this one.

FIG. 1.05NXB-UBT

U-Bolts

U-shaped clamp threaded both ends for pipe and rod.

M6–M24 · 1/4"–1"

FIG. 1.06NXB-ANB

Anchor Bolts

Cast-in foundation bolt — headed, bent, or swedged.

M12–M48 · 1/2"–2"

FIG. 1.01NXB-HEX

Hex Bolts

Six-sided structural workhorse for nut or tapped-hole joints.

M5–M48 · 1/4"–2"

FIG. 3.01NXB-HXN

Hex Nuts

The standard six-sided nut for threaded assemblies.

M3–M48 · #4–2"

FIG. CTATalk to sales

Spec eye bolts for your next build.

Grade, material, finish, and standard — matched to your joint and quoted from stock. Tell us the load case and we’ll confirm the line.

Talk to sales about Eye Bolts Back to the range
